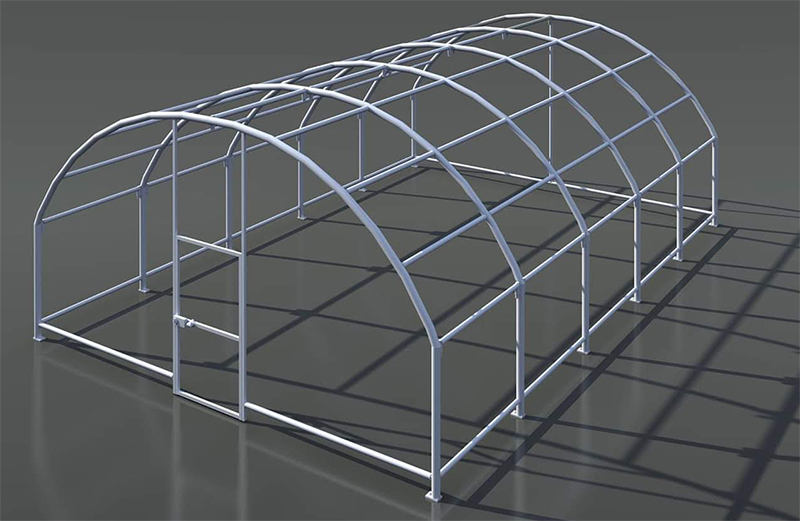

General features : Single profile (tubes profile) Side Up model. Standart models width size 4m, 5m, 6m and 7m. If you want, yo can change width, side (eave) height and ridge height. The length can be produced as much as you need at intervals of 2 meters. The standard models above are always available in our stock, and the shipment is provided as soon as possible after the order is placed. Please contact us for different sizes. PDF Product Catalogue
Product Specifications
| Width | 4 m. |
| Side height | 1,60 m |
| Ridge height | 2,70 m. |
| Bay distance | 2,0 m. |
| Main profile | Ø38x1.5 mm |
| Fittings | Ø32x1.2 mm |
| Profile type | Galvanised DX51D |
| One truss weight | 12.5 kg. |
| One fittings weight | 14,2 kg. |
| 2m distance PVC | 19.5 m² |
| Roof cover / Sidewalls | Optional |
| Front and back walls | Optional |
| Insulation | Optional |
| Door size and type | Optional |
| Windows size and type | Optional |

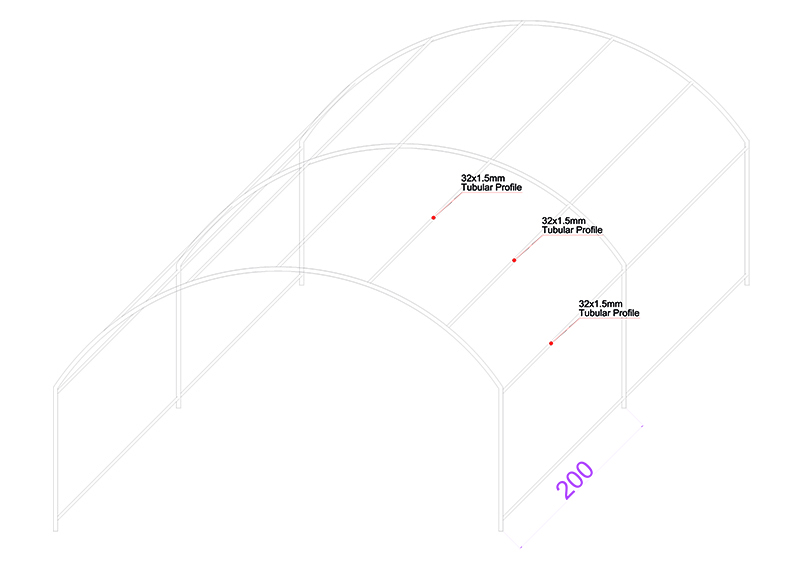

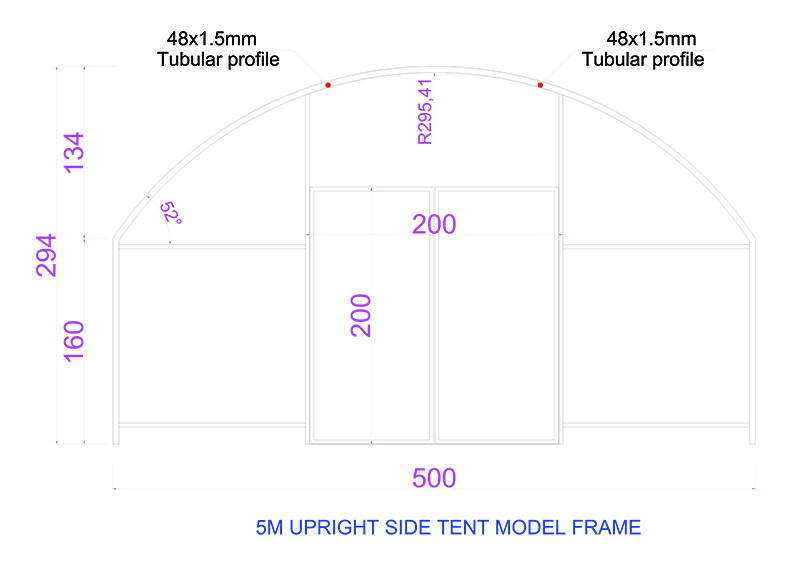

Product Specifications
| Width | 5 m. |
| Side height | 1,60 m |
| Ridge height | 2,94 m. |
| Bay distance | 2,0 m. |
| Main profile | Ø48x1.5 mm |
| Fittings | Ø32x1.2 mm |
| Profile type | Galvanised DX51D |
| One truss weight | 17 kg. |
| One fittings weight | 18 kg. |
| 2m distance PVC | 20,6 m² |
| Roof cover / Sidewalls | Optional |
| Front and back walls | Optional |
| Insulation | Optional |
| Door size and type | Optional |
| Windows size and type | Optional |

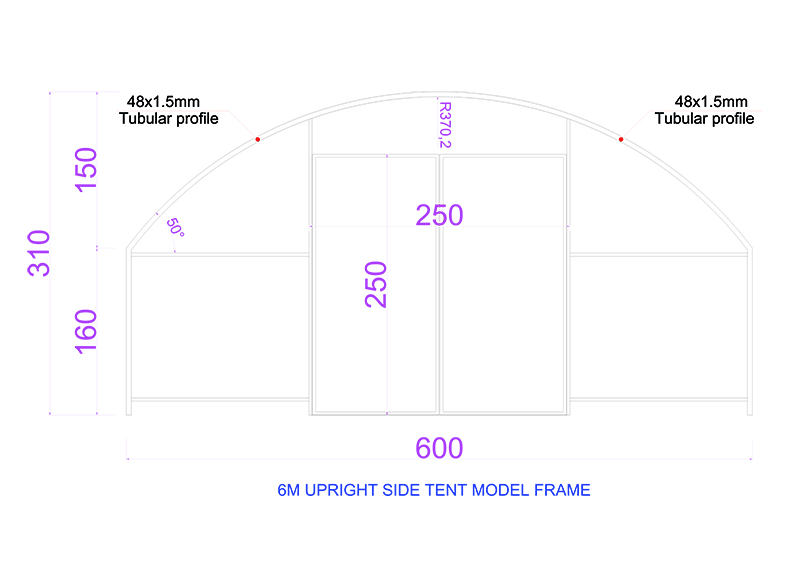

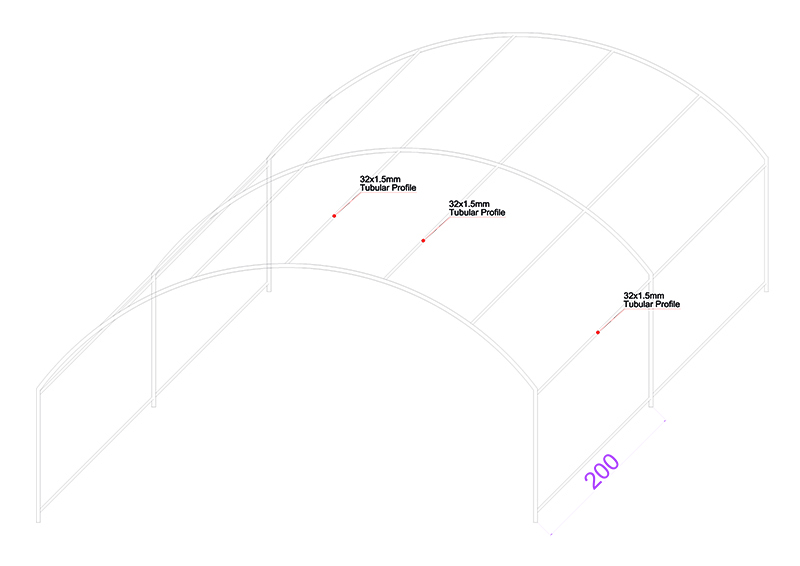

Product Specifications
| Width | 6 m. |
| Side height | 1,60 m |
| Ridge height | 3,10 m. |
| Bay distance | 2,0 m. |
| Main profile | Ø48x1.5 mm |
| Fittings | Ø32x1.2 mm |
| Profile type | Galvanised DX51D |
| One truss weight | 19 kg. |
| One fittings weight | 18 kg. |
| 2m distance PVC | 22,7 m² |
| Roof cover / Sidewalls | Optional |
| Front and back walls | Optional |
| Insulation | Optional |
| Door size and type | Optional |
| Windows size and type | Optional |

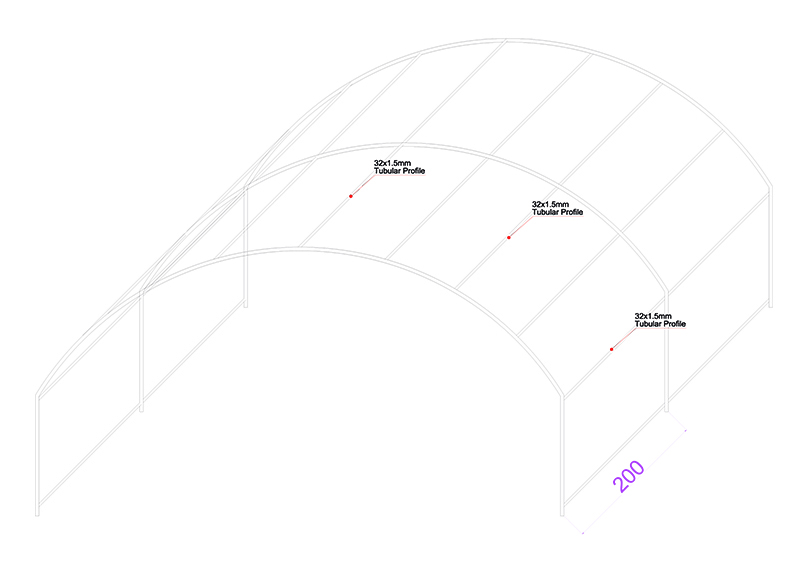

Product Specifications
| Width | 7 m. |
| Side height | 1,60 m |
| Ridge height | 3,56 m. |
| Bay distance | 2,0 m. |
| Main profile | Ø48x1.5 mm |
| Fittings | Ø32x1.2 mm |
| Profile type | Galvanised DX51D |
| One truss weight | 22 kg. |
| One fittings weight | 21 kg. |
| 2m distance PVC | 25,5 m² |
| Roof cover / Sidewalls | Optional |
| Front and back walls | Optional |
| Insulation | Optional |
| Door size and type | Optional |
| Windows size and type | Optional |
| Material | Standards and Certificates |
|---|---|
| EN 10204 | |
| EN ISO 6892-1 | |
| Steel Materials | CR 10261 |
| EN 10219-1 | |
| EN 10204 - 2.2 | |
| Flame reterdant:B1/B2(DIN 4102-1) | |
| Safety Data Sheet : Annex II to REACH | |
| PVC Tarpaulin | ISO9001:2015 |
| ISO14001:2015 | |
| ISO27001 |
| Spec | OPTION A | OPTION B |
|---|---|---|
| Weight | 610 (±20) gr/m² | 650 (±20) gr/m² |
| Scrim/Threads | 8x8 cm | 8x8 cm |
| Tensile Strength | 2750/2500 N/5cm | 2750/2500 N/5cm |
| Tearing Strength | 300/250 N/5cm | 300/250 N/5cm |
| Temperature | -30~70 ℃ | -30~70 ℃ |
| Yarn (Denier) | 1000Dx1000D | 1000Dx1000D |
| UV-resistant | Yes | Yes |
| Water resistance | Min. 8000 mmSS | Min. 8000 mmSS |
| Light fastness | 6+ | 6+ |
| Flame reterdant | B1/B2(DIN 4102-1) | B1/B2(DIN 4102-1) |
| Lacquer | None | Top side |
| Wear | 9,000 rotation | 9,000 rotation |
| Type | Single Buble | Direction of heat flow - Up | R-14.1 |
| Direction of heat flow - Down | R-4.9 | ||
| Direction of heat flow - Horizontal | R-6.2 | ||
| Thermal conductivity | 0.031 W/mK | ||
| Type | Double Buble | Direction of heat flow - Up | R-14.6 |
| Direction of heat flow - Down | R-5.4 | ||
| Direction of heat flow - Horizontal | R-6.7 | ||
| Thermal conductivity | 0.038 W/mK | ||
| Type | Izofelt | Weight | 500 (±20) gr/m² |
| Thickness | 10 – 12 mm | ||
| Width | 210 cm. | ||
| Color | White | ||
| Made of | 100% polyester | ||
| High moisture retention | Yes | ||
| Quick drying | Yes | ||
| Sound absorbing | Yes | ||
| Phthalate free | Yes |
| Door size (W/H) | Model 4M | Model 5M | Model 6M | Model 7M |
|---|---|---|---|---|
| Zipper Door | Yes | Yes | Yes | Yes |
| 1 x 2 M | Yes | Yes | Yes | Yes |
| 2 x 2 M | No | Yes | Yes | Yes |
| 2,5 x 2,5 M | No | No | No | Yes |
Note : : Please contact our company for other door size and special type options
| Window size (W/H) | Model 4M | Model 5M | Model 6M | Model 7M |
|---|---|---|---|---|
| Fiber tulle, PVC cover 90 x 50 cm. | Yes | Yes | Yes | Yes |
| PVC window 100 x 50 cm | Yes | Yes | Yes | Yes |
Note : : Please contact our company for other window size and special type options
| < | Model 4M | Model 5M | Model 6M | Model 7M |
|---|---|---|---|---|
| Sheet metal chimney Ø32 cm | Yes | Yes | Yes | Yes |
| Ridge ventilation 1x2 m | No | No | No | No |
| PVC Partition with steel frame door in tent | Yes | Yes | Yes | Yes |
| PVC Partition with zipper door in tent | Yes | Yes | Yes | Yes |
| Middle support pole | Yes | Yes | Yes | Yes |
| Purpose of usage | Only steel structure | Only PVC coated | PE + Single / Double Bubble foil + PVC | PE + Izofelt + Single / Double Bubble foil + PVC |
|---|---|---|---|---|
| Machinery and equipment storage | Yes | Yes | Yes | No |

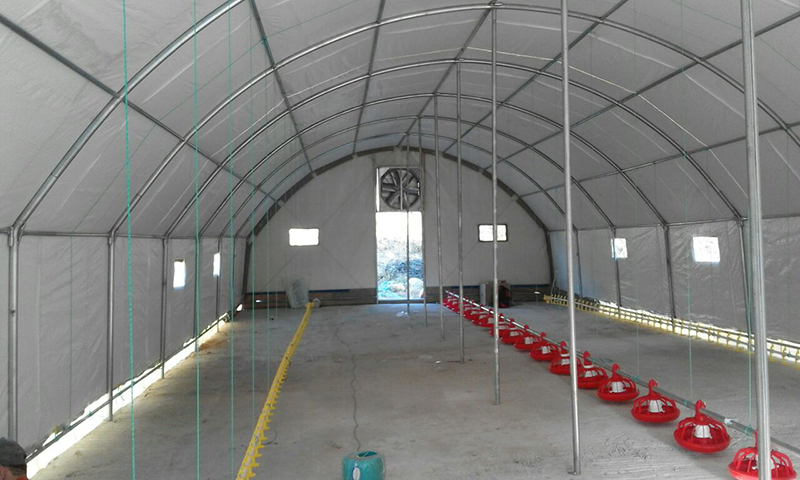

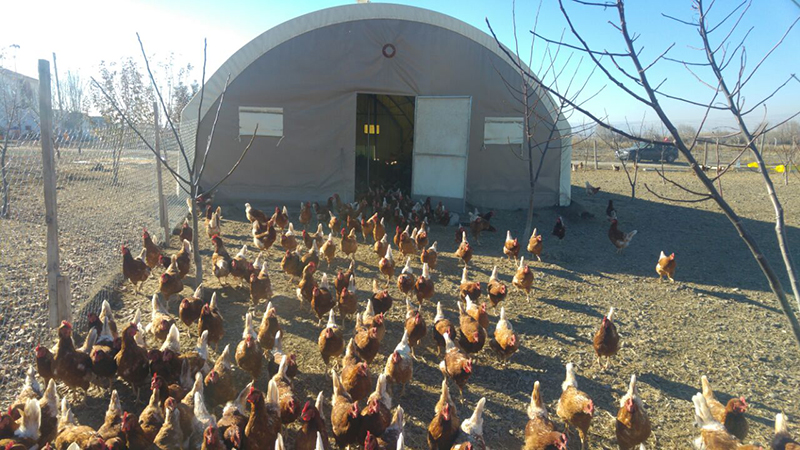

| Cattle, ovine and poultry shelter | No | No | Yes | Yes |
| Human shelter and disaster tents | No | No | Yes | No |
| Mushroom growing tent | No | No | No | Yes |
