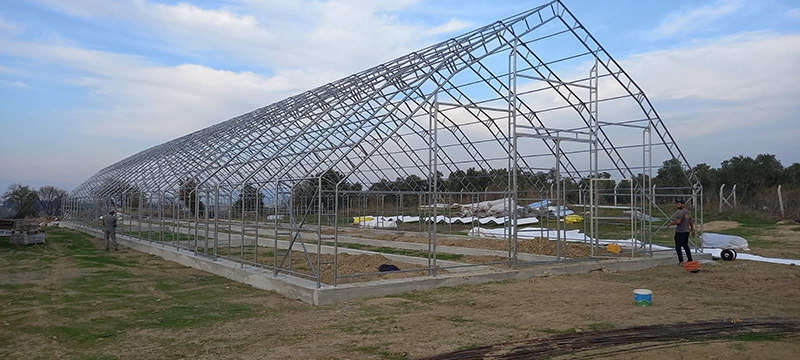

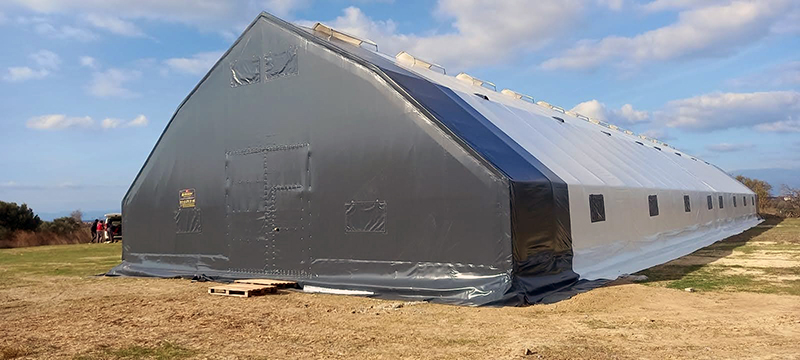

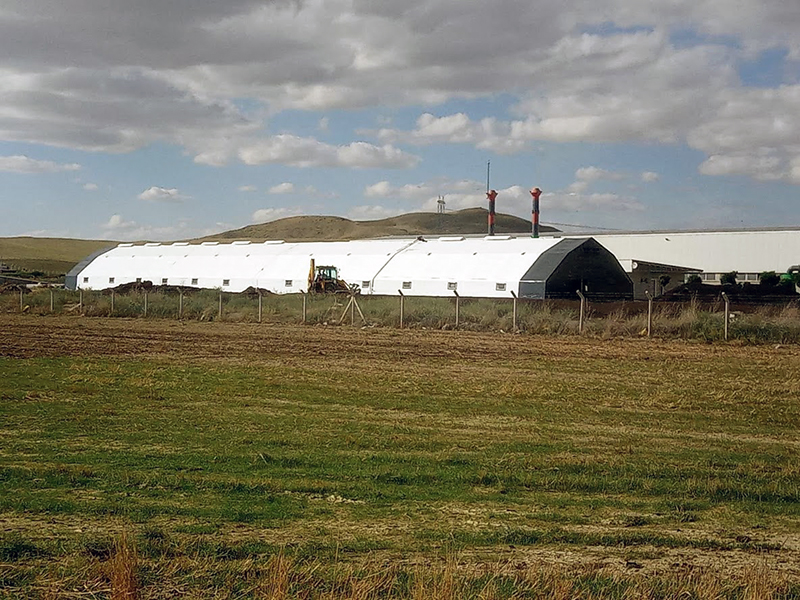

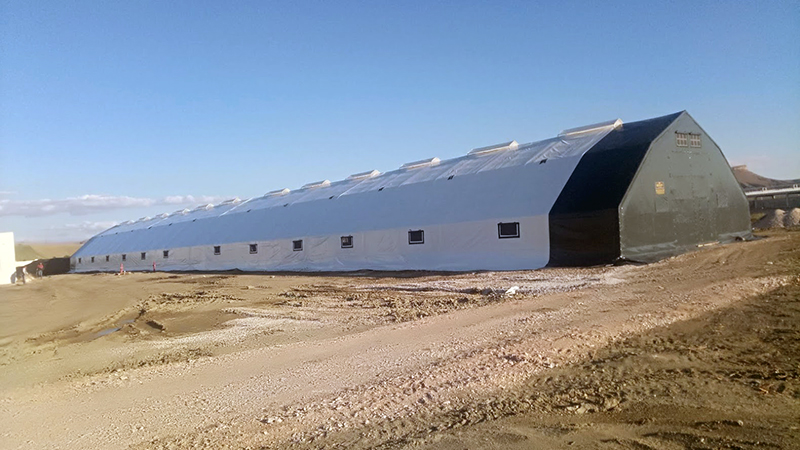

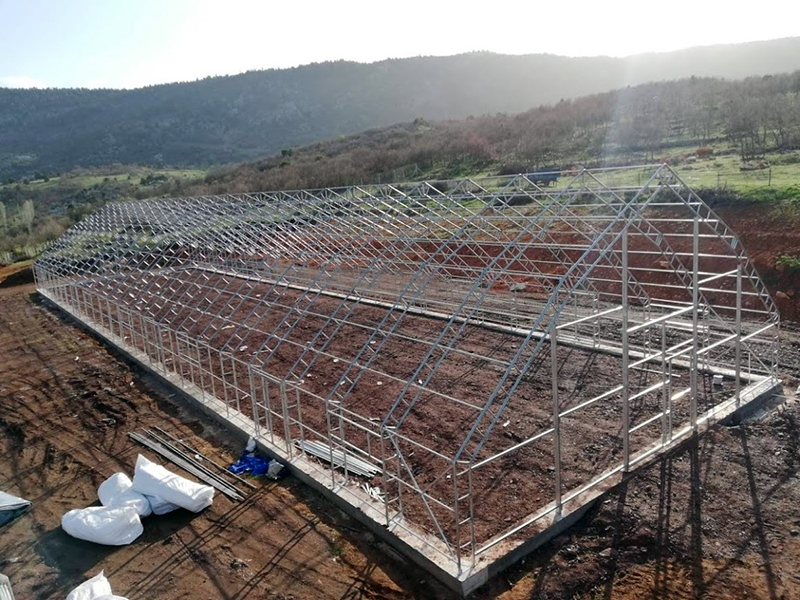

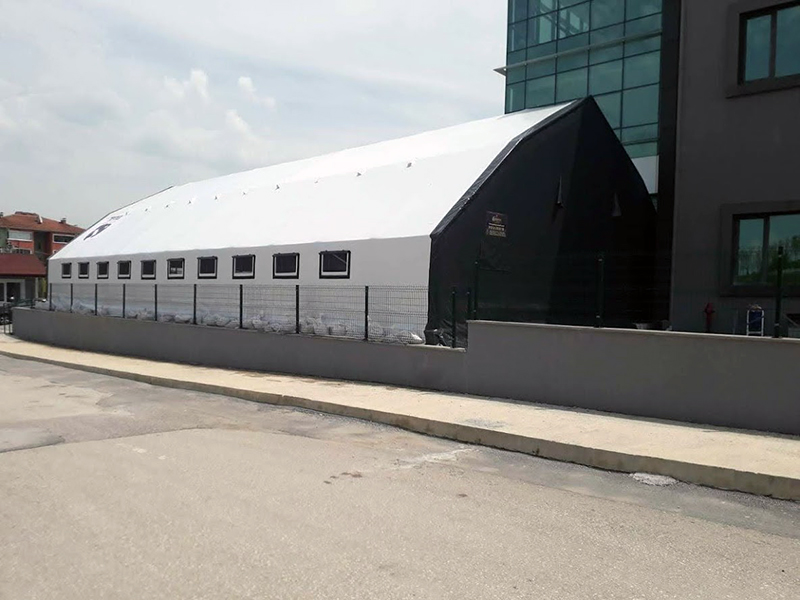

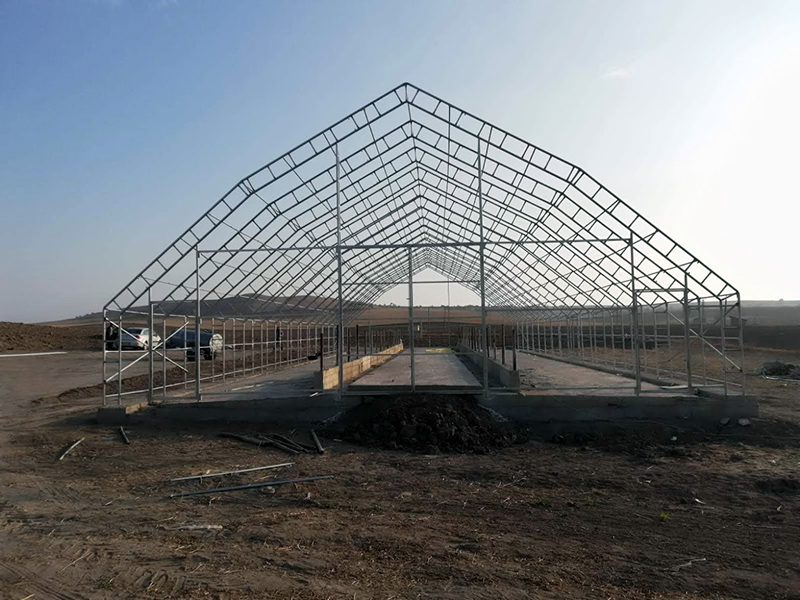

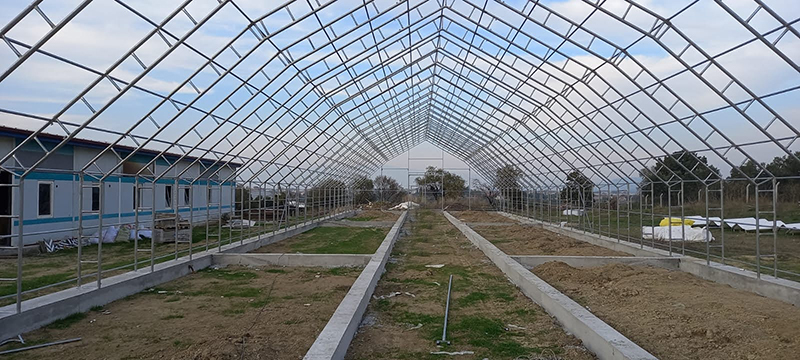

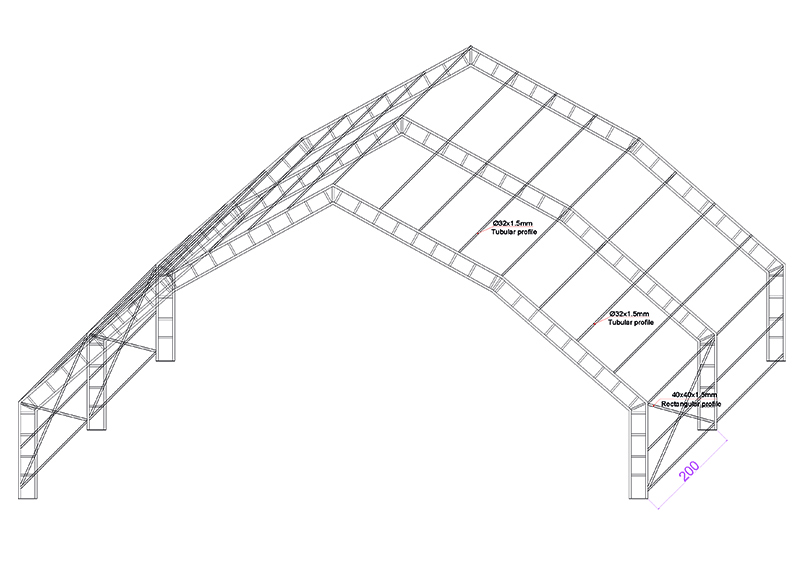

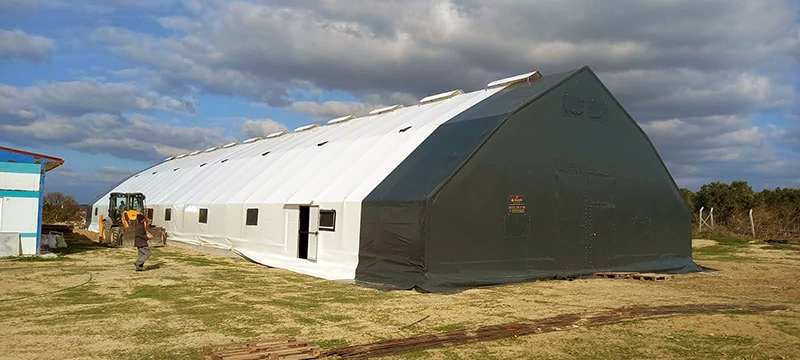

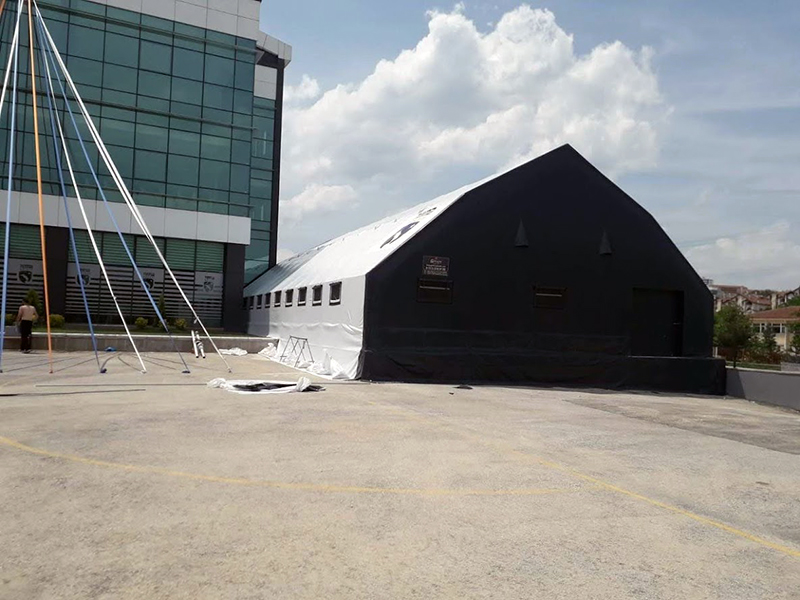

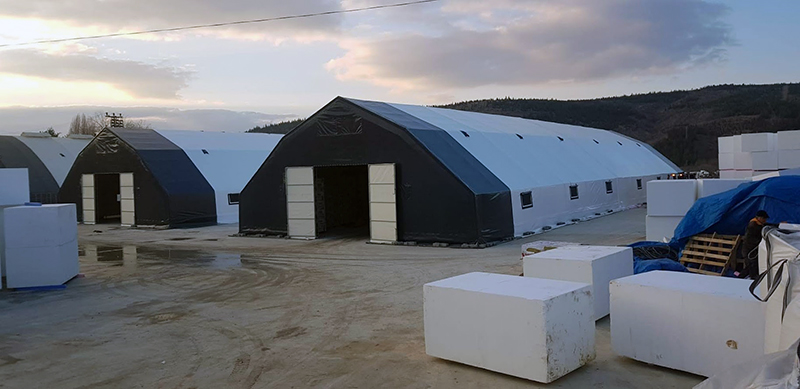

General features : Double truss (tubes profile) five corner model. Standart models width size 10m, 12m and 13m. If you want, yo can change width, side (eave) height and ridge height. The length can be produced as much as you need at intervals of 2 meters. The standard models above are always available in our stock, and the shipment is provided as soon as possible after the order is placed. Please contact us for different sizes. PDF Product Catalogue
Product Specifications
| Width | 10 m. |
| Side height | 2,0 m |
| Ridge height | 5,47 m. |
| Bay distance | 2,0 m. |
| Main profile Upper | Ø48x1.5 mm |
| Main profile Lower | Ø48x1.5 mm |
| Fittings | Ø32x1.5 mm |
| Profile type | Galvanised DX51D |
| One truss weight | 70 kg. |
| One fittings weight | 43,5 kg. |
| Roof cover / Sidewalls | Optional |
| Front and back walls | Optional |
| Insulation | Optional |
| Door size and type | Optional |
| Windows size and type | Optional |

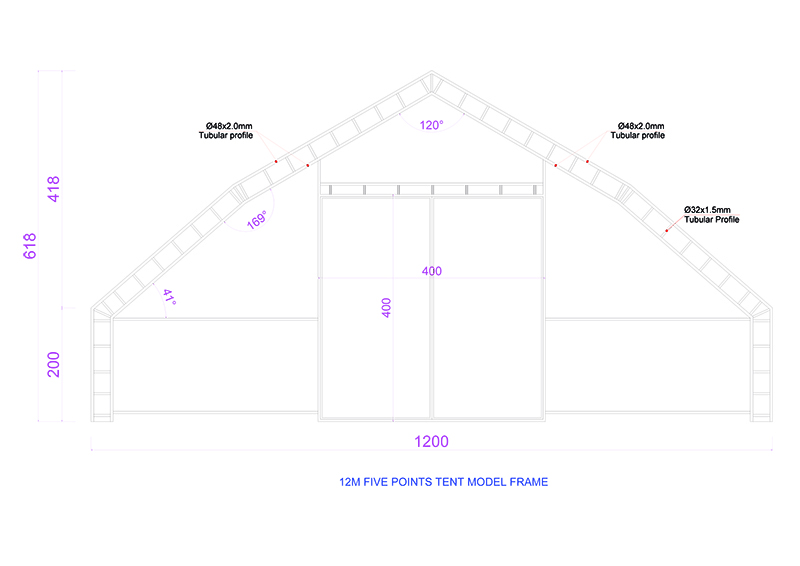

Product Specifications

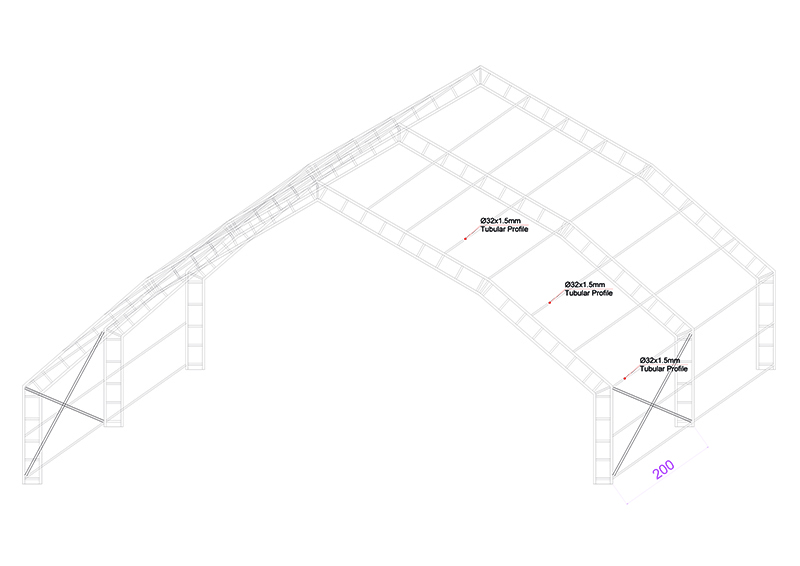

| Width | 12 m. |
| Side height | 2,0 m |
| Ridge height | 6,18 m. |
| Bay distance | 2,0 m. |
| Main profile upper | Ø48x2,0 mm |
| Main profile lower | Ø48x2,0 mm |
| Fittings | Ø32x1.5 mm |
| Profile type | Galvanised DX51D |
| One truss weight | 104 kg. |
| One fittings weight | 48 kg. |
| Roof cover / Sidewalls | Optional |
| Front and back walls | Optional |
| Insulation | Optional |
| Door size and type | Optional |
| Windows size and type | Optional |
Product Specifications
| Width | 13 m. |
| Side height | 2,0 m |
| Ridge height | 6,51 m. |
| Bay distance | 2 m. |
| Main profile upper | Ø48x2,0 mm |
| Main profile upper | Ø48x2,0 mm |
| Fittings | Ø32x1.5 mm |
| Profile type | Galvanised DX51D |
| One truss weight | 112 kg. |
| One fittings weight | 48 kg. |
| Roof cover / Sidewalls | Optional |
| Front and back walls | Optional |
| Insulation | Optional |
| Door size and type | Optional |
| Windows size and type | Optional |
| Material | Standards and Certificates |
|---|---|
| EN 10204 | |
| EN ISO 6892-1 | |
| Steel Materials | CR 10261 |
| EN 10219-1 | |
| EN 10204 - 2.2 | |
| Flame reterdant:B1/B2(DIN 4102-1) | |
| Safety Data Sheet : Annex II to REACH | |
| PVC Tarpaulin | ISO9001:2015 |
| ISO14001:2015 | |
| ISO27001 |
| Spec | OPTION A | OPTION B | OPTION C |
|---|---|---|---|
| Weight | 610 (±20) gr/m² | 650 (±20) gr/m² | 900 (±20) gr/m² |
| Scrim/Threads | 8x8 cm | 8x8 cm | 12x12 cm |
| Tensile Strength | 2750/ 2500 N/5cm | 2750/ 2500 N/5cm | 4000/ 4000 N/5cm |
| Tearing Strength | 300/250 N/5cm | 300/250 N/5cm | 490/490 N/5cm |
| Temperature | -30~70 ℃ | -30~70 ℃ | -30~70 ℃ |
| Yarn (Denier) | 1000Dx 1000D | 1000Dx 1000D | 2000Dx 2000D |
| UV-resistant | Yes | Yes | Yes |
| Water resistance | Min. 8000 mmSS | Min. 8000 mmSS | Min. 8000 mmSS |
| Light fastness | 6+ | 6+ | 6+ |
| Flame reterdant | B1/B2 (DIN 4102-1) | B1/B2 (DIN 4102-1) | B1/B2 (DIN 4102-1) |
| Lacquer | None | Top side | Top side |
| Wear | 9,000 rotation | 9,000 rotation | 9,000 rotation |
| Type | Single Buble | Direction of heat flow - Up | R-14.1 |
| Direction of heat flow - Down | R-4.9 | ||
| Direction of heat flow - Horizontal | R-6.2 | ||
| Thermal conductivity | 0.031 W/mK | ||
| Type | Double Buble | Direction of heat flow - Up | R-14.6 |
| Direction of heat flow - Down | R-5.4 | ||
| Direction of heat flow - Horizontal | R-6.7 | ||
| Thermal conductivity | 0.038 W/mK | ||
| Type | Izofelt | Weight | 500 (±20) gr/m² |
| Thickness | 10 – 12 mm | ||
| Width | 210 cm. | ||
| Color | White | ||
| Made of | 100% polyester | ||
| High moisture retention | Yes | ||
| Quick drying | Yes | ||
| Sound absorbing | Yes | ||
| Phthalate free | Yes |
Steel frame structure (hinged or sliding)

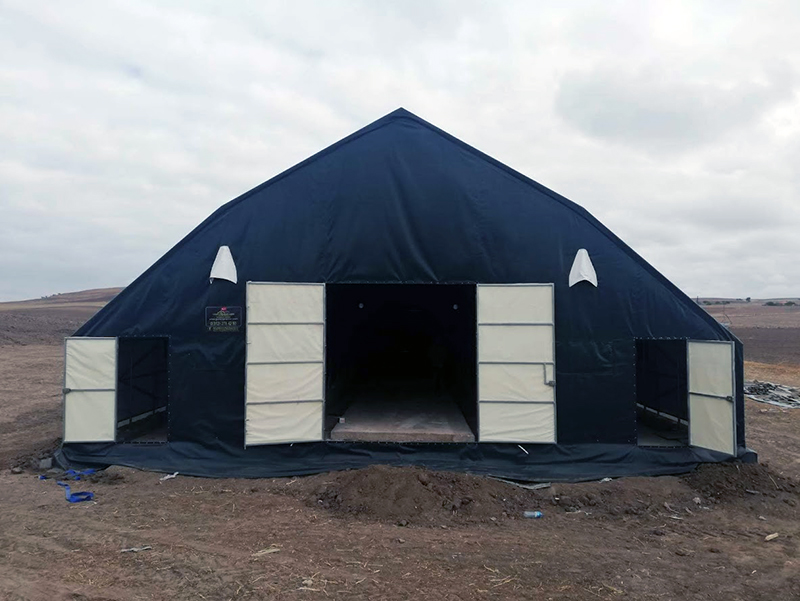

| Door size (W/H) | Model 10M | Model 12M | Model 13M |
|---|---|---|---|
| Zipper Door | Yes | Yes | Yes |
| 1 x 2 M | Yes | Yes | Yes |
| 2 x 2 M | Yes | Yes | Yes |
| 2,5 x 2,5 M | Yes | Yes | Yes |
| 2,5 x 3 M | Yes | Yes | Yes |
| 3 x 3 M | Yes | Yes | Yes |
| 3,5 x 3,5 M | Yes | Yes | Yes |
| 4 x 4 M | No | Yes | Yes |
| Side entrance door (W/H) | 150 x 180 cm | 150 x 180 cm | 150 x 180 cm |
Note : : Please contact our company for other door size and special type options

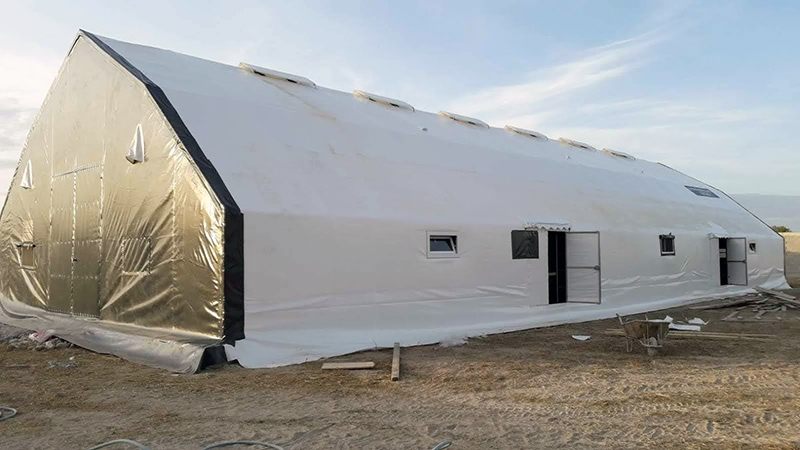

| Window size (W/H) | Model 10M | Model 12M | Model 13M |
|---|---|---|---|
| Fiber tulle, PVC cover 90 x 50 cm. | Yes | Yes | Yes |
| PVC window 100 x 50 cm | Yes | Yes | Yes |
Note : : Please contact our company for other window size and special type options
| Model 10M | Model 12M | Model 13M | |
|---|---|---|---|
| Sheet metal chimney Ø32 cm | Yes | Yes | Yes |
| Ridge ventilation 1x2 m | Yes | Yes | Yes |
| PVC Partition with steel frame door in tent | Yes | Yes | Yes |
| PVC Partition with zipper door in tent | Yes | Yes | Yes |
| Purpose of usage | Only steel structure | Only PVC coated | PE + Single / Double Bubble foil + PVC | PE + Izofelt + Single / Double Bubble foil + PVC |
|---|---|---|---|---|

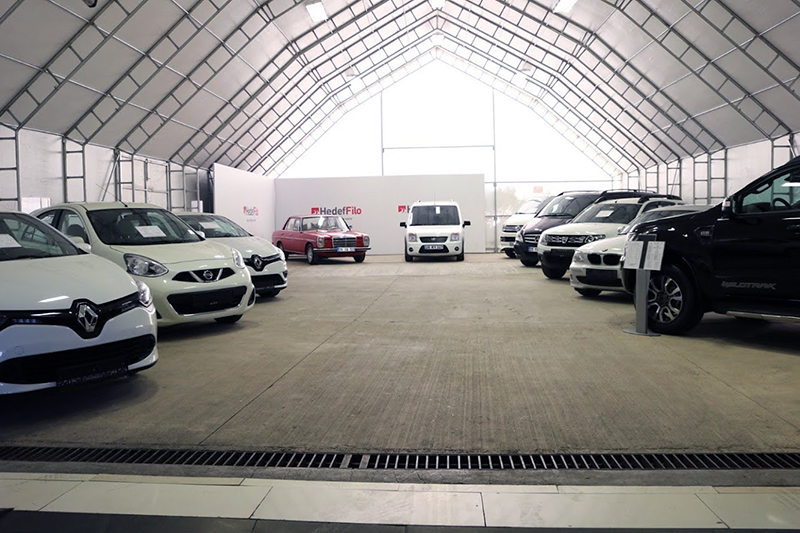

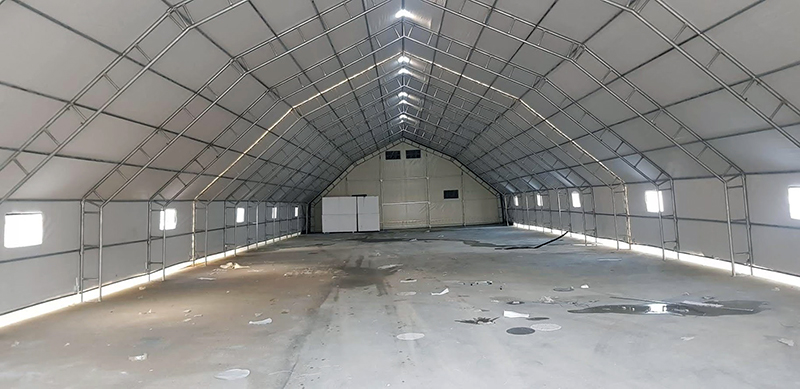

| Factory and manufacturing area | Yes | Yes | Yes | Yes |

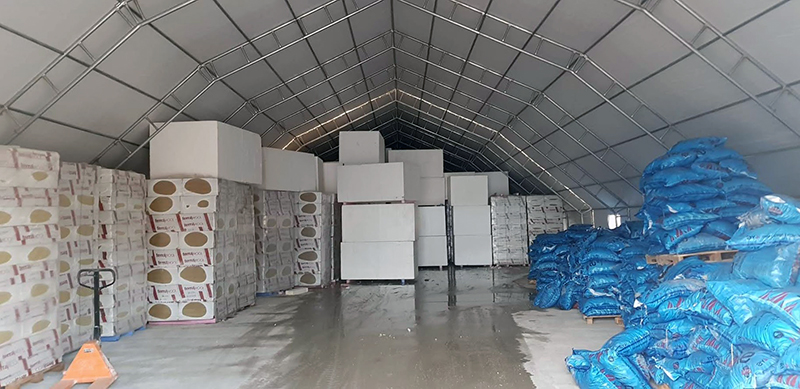

| Machinery and equipment storage | Yes | Yes | Yes | No |

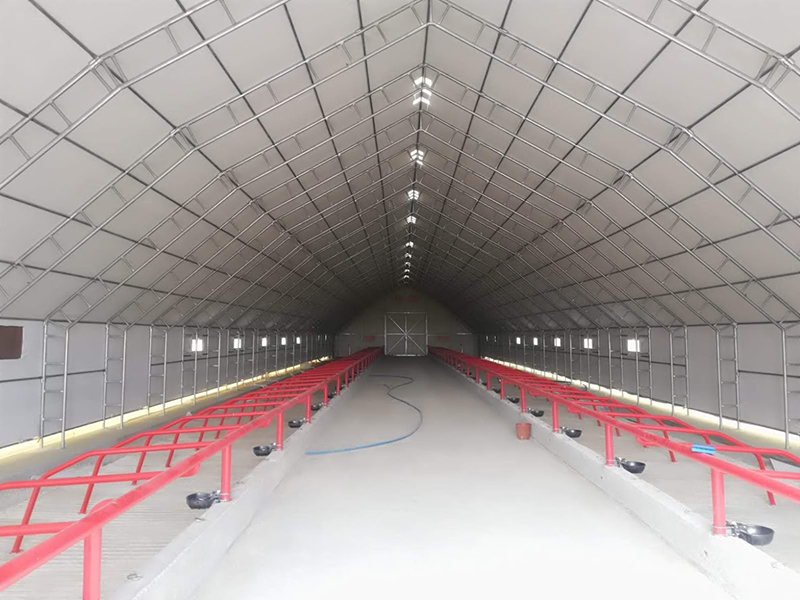

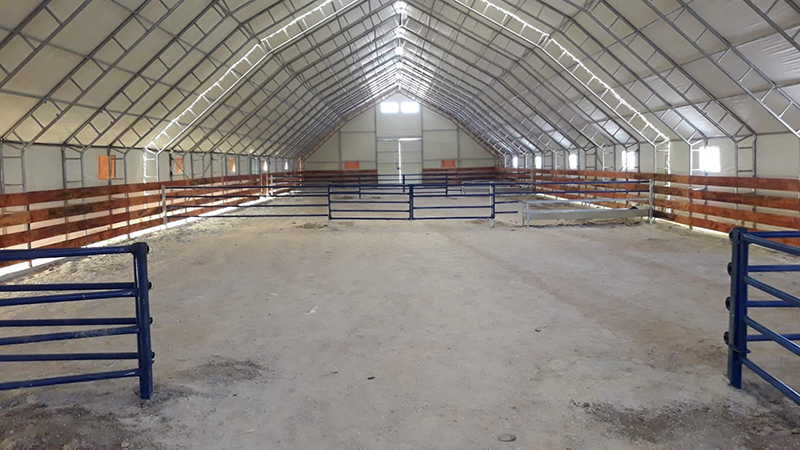

| Cattle, ovine and poultry shelter | No | No | Yes | Yes |
| Human shelter and disaster tents | No | No | Yes | No |
| Mushroom growing tent | No | No | No | Yes |
